Cathedral Ceiling Kit for 6" Inner Diameter Chimney Pipe with Flat Top Chimney Cap

Our cathedral ceiling kit includes all the components necessary to connect single wall stove pipe to double wall Class-A chimney and vent it through a cathedral ceiling.

For detailed installation instructions check out our Cathedral Ceiling Planning Guide. Or view the installation instructions.

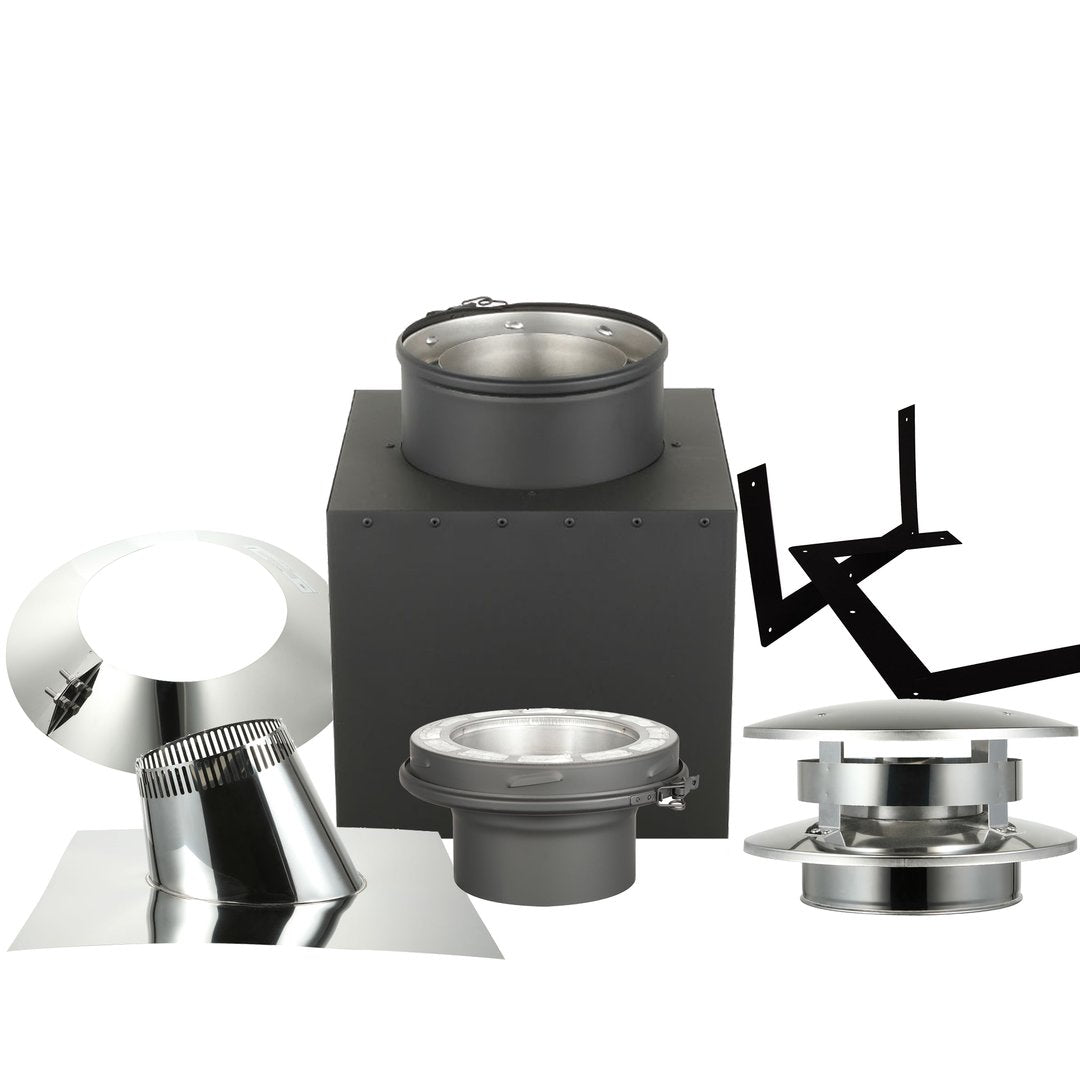

KIT INCLUDES

(1) Stove Pipe Adapter
(1) Support Box (select the11",24", or36" Support Box)

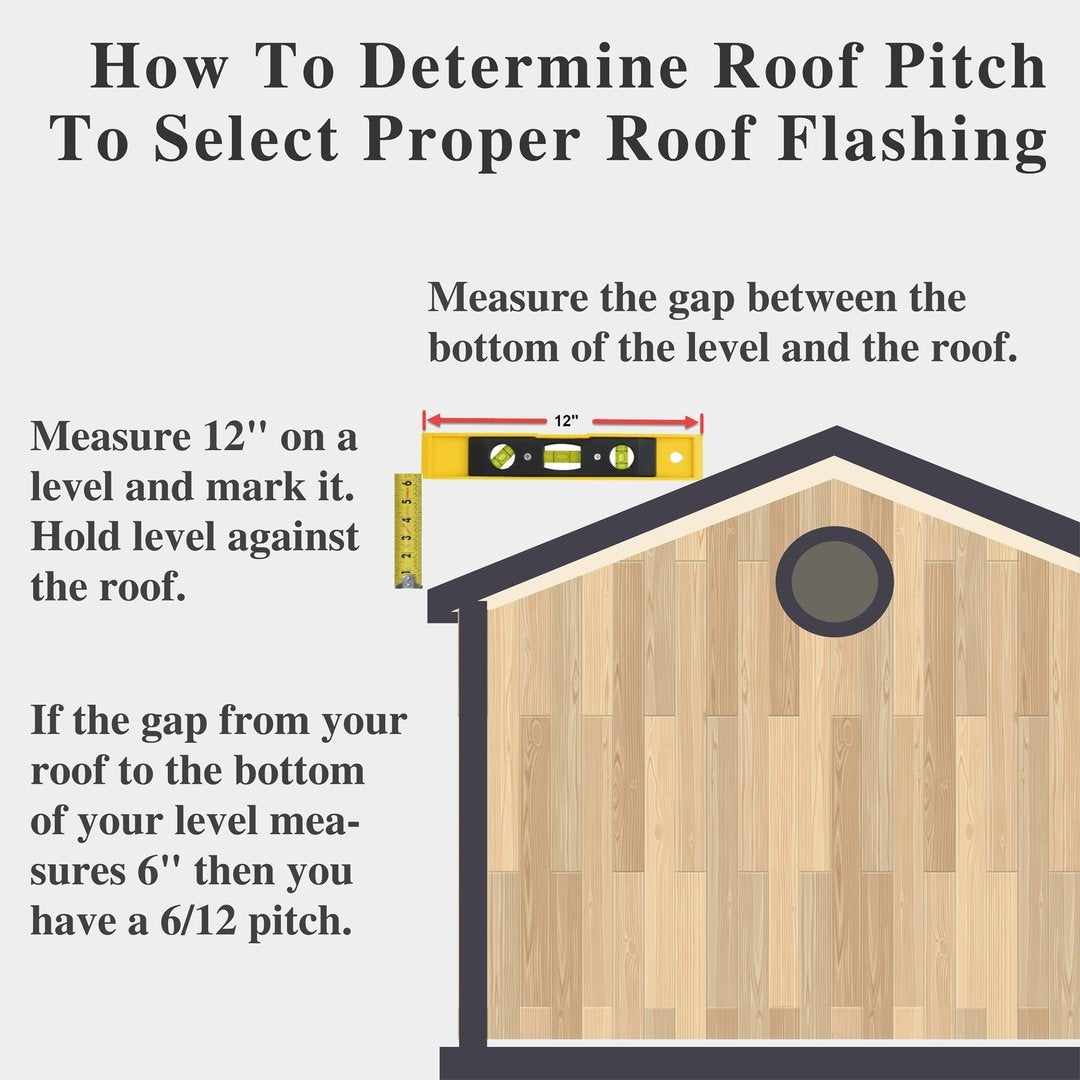

(1) Roof Flashing (select a Flat, 1/12 to 7/12 Pitch, or 7/12 to 12/12 Pitch Flashing
(1) Storm Collar
(1) Flat Top Chimney Cap

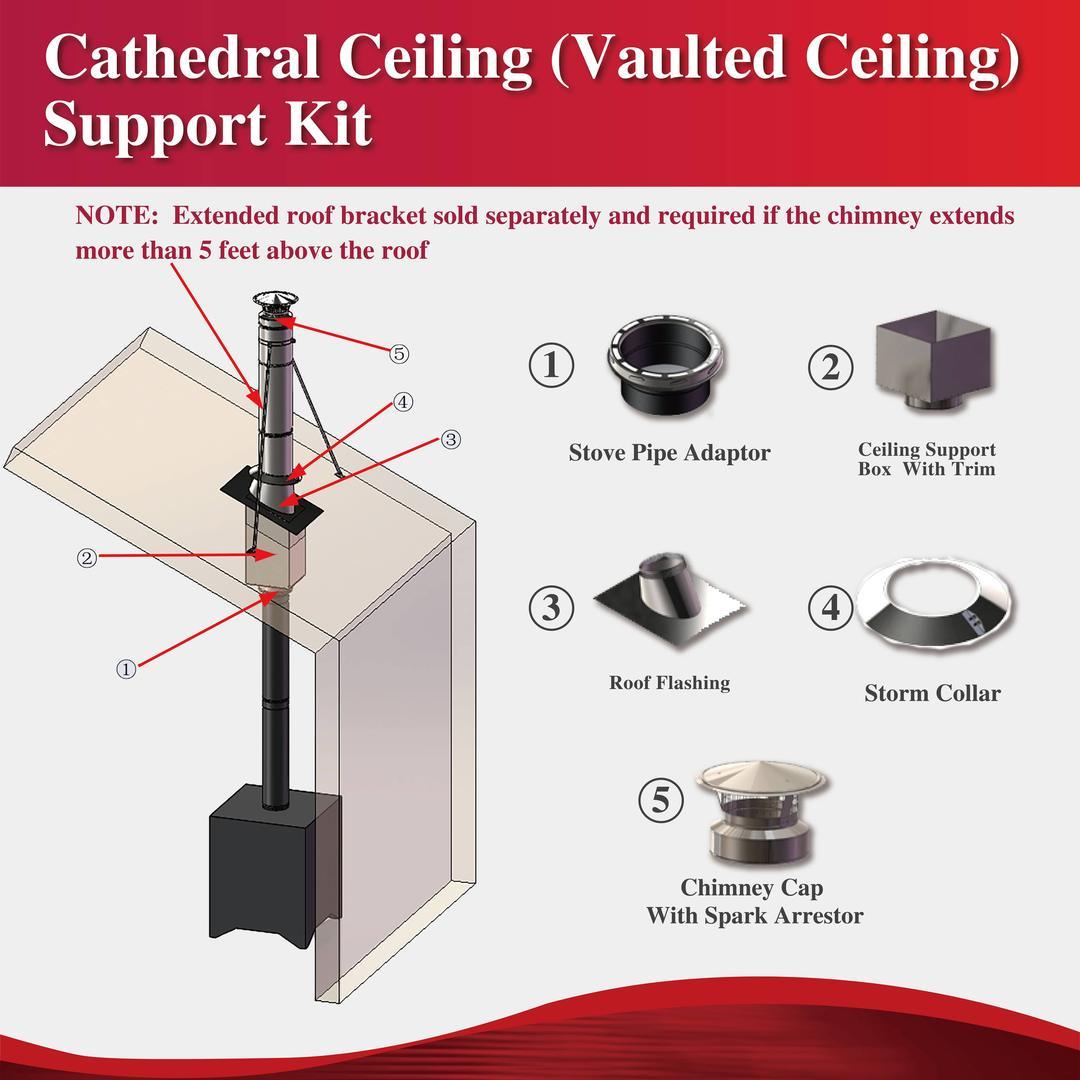

INDIVIDUAL PARTS DESCRIPTION

• Stove Pipe Adapter is the transition piece that connects the single wall stove pipe to the ceiling support box.

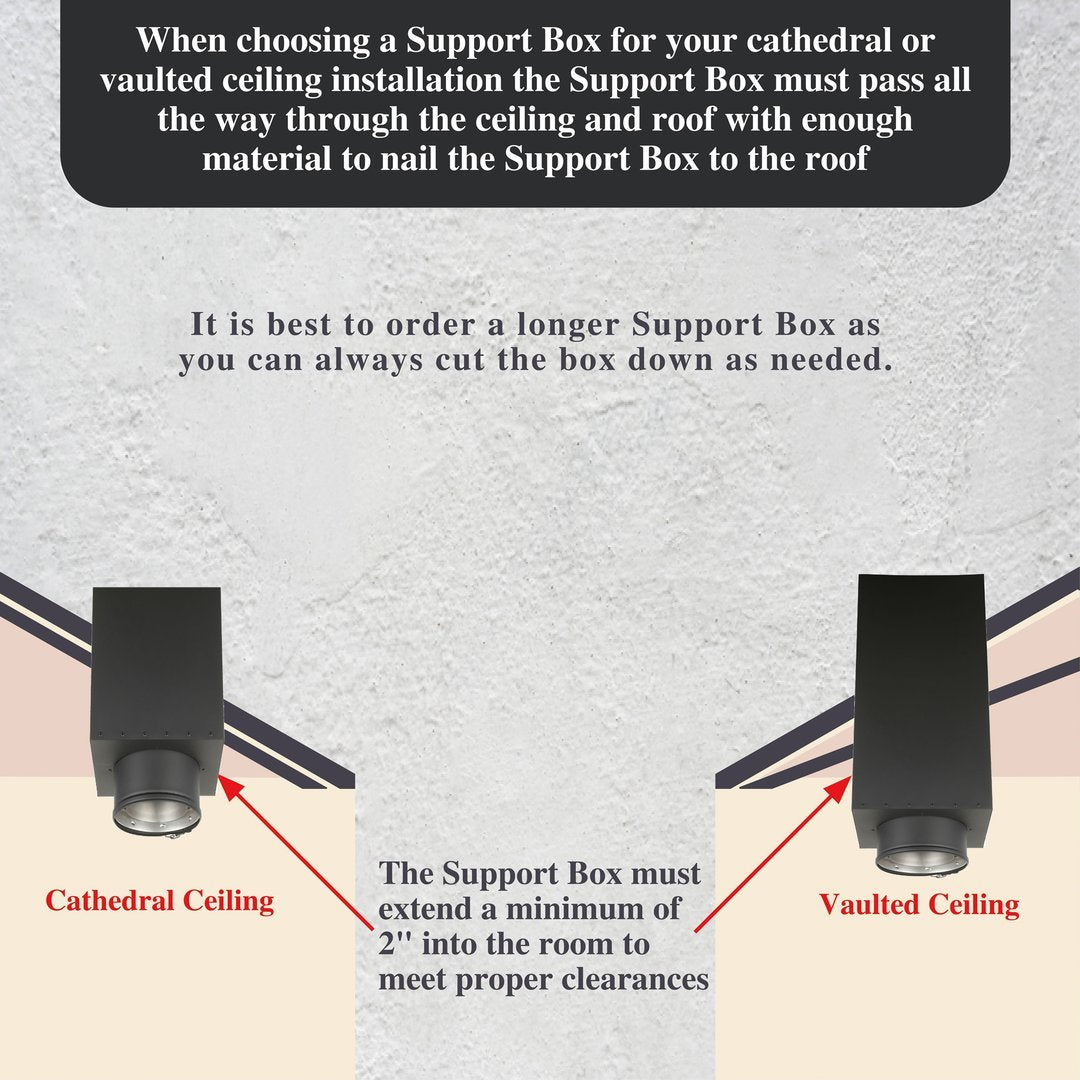

• Ceiling Support Box mounts to the ceiling joists or roof (depending on your installation) and allows the chimney to safely pass through the ceiling and into the attic. Can support a maximum of 50 feet of chimney. Includes trim to provide a finished look inside the home.


• Roof Flashing provides leak prevention for the roof penetration of the chimney system.


• Storm Collar works together with the roof flashing to provide a waterproof seal where the chimney passes through the roof.

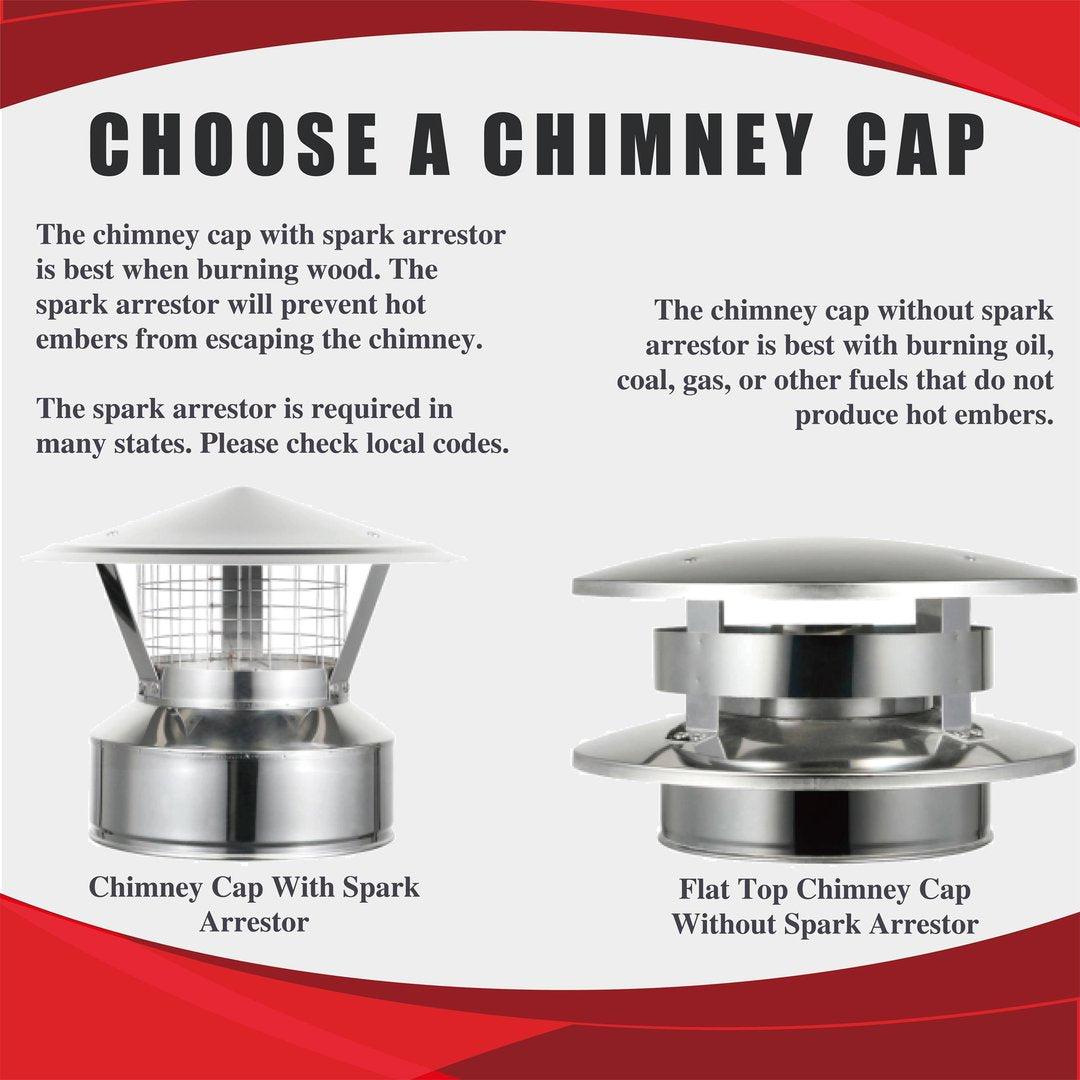

• Chimney Cap tops off the chimney system to keep out rain, snow, leaves, debris, and animals.

INSTALLATION NOTES

Single Wall Stove Pipe is not included in this kit and is required to connect your wood stove or other heating appliance to the support box.

To complete this kit, purchase the lengths of pipe needed to run from the support box out the roof.

If the chimney extends more than 5 feet above the roof an Extended Roof Brace (sold separately) must be installed.

CONSTRUCTION MATERIAL

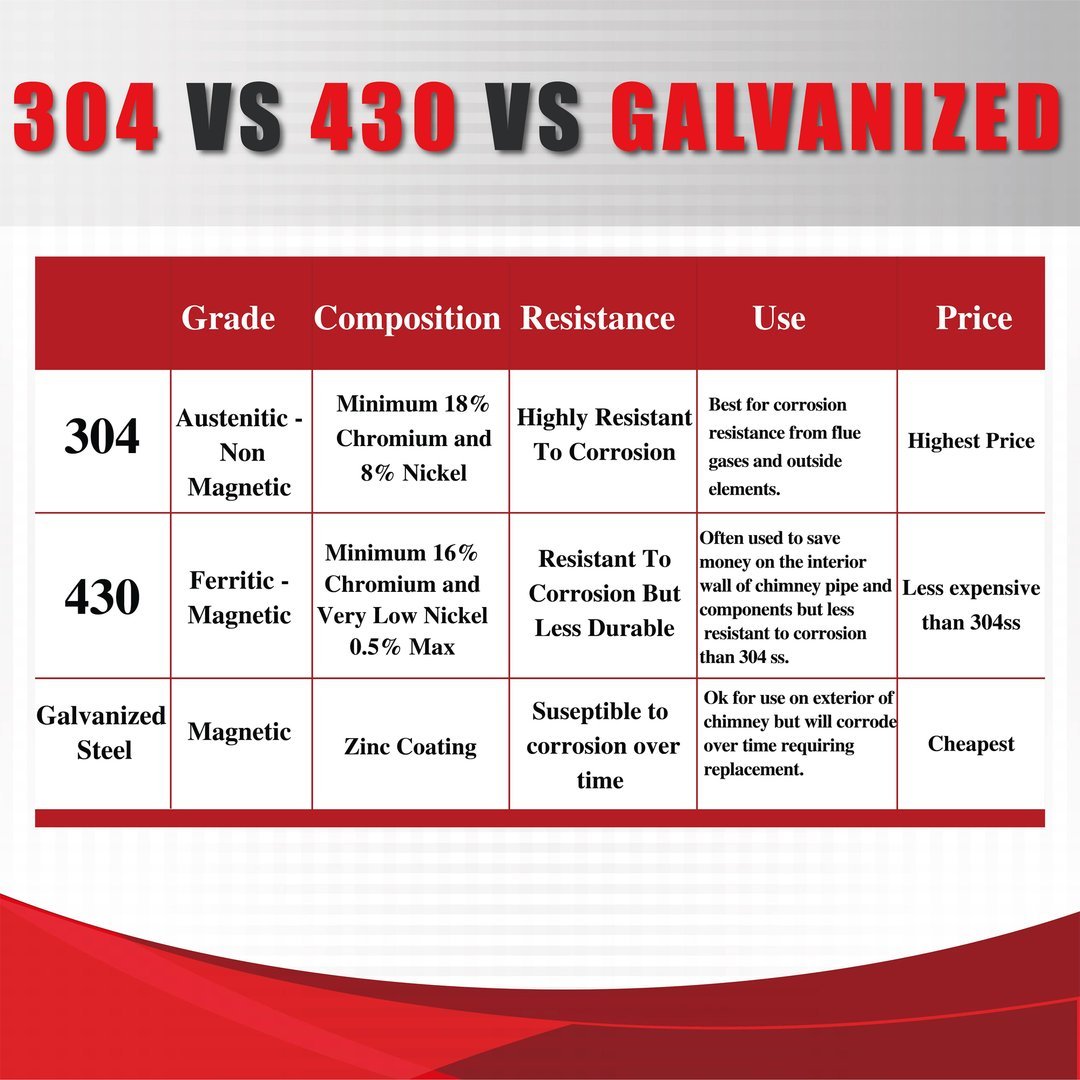

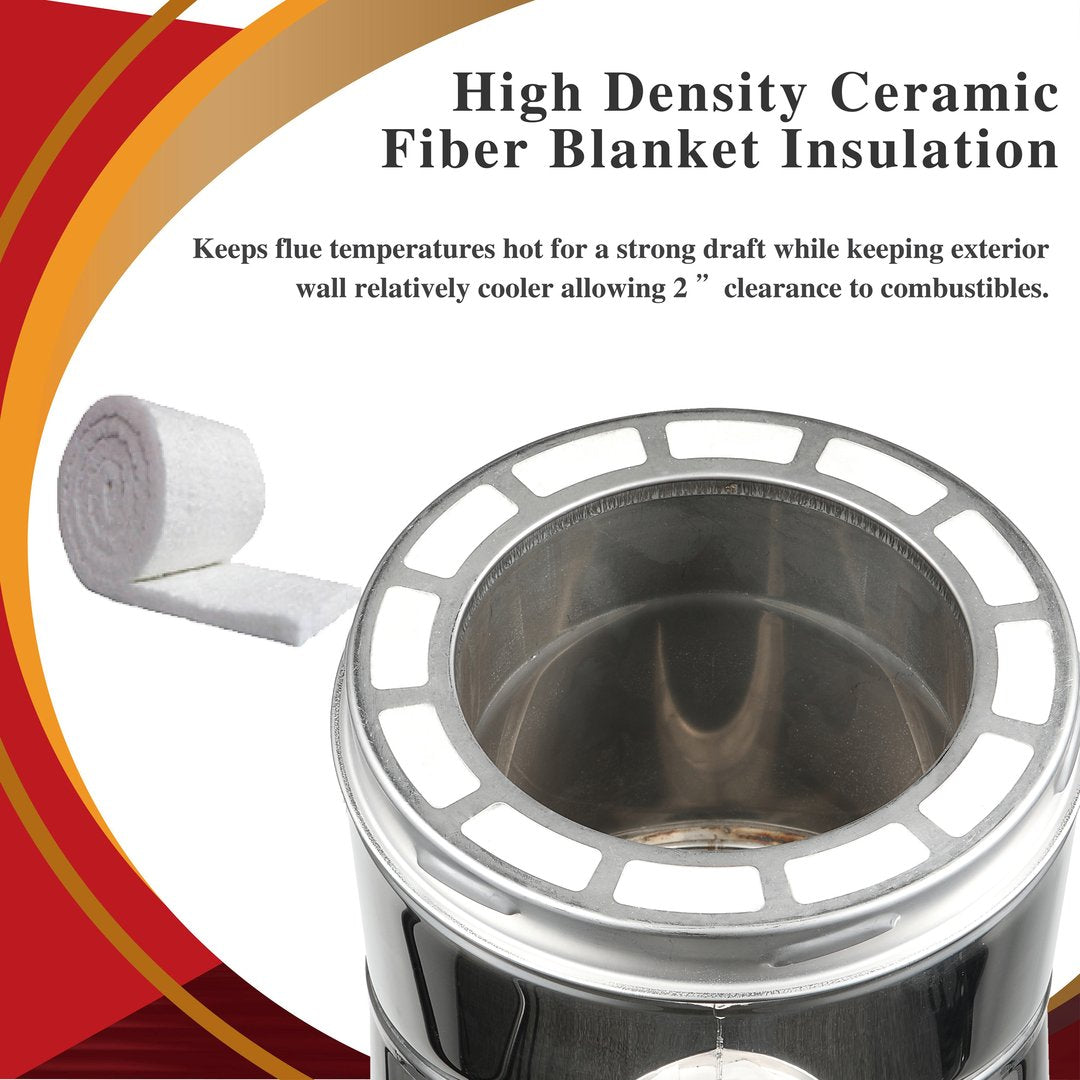

Our double wall Class-A insulated chimney system delivers superior safety and performance. The 1.18" thick high density ceramic fiber blanket insulation is sandwiched between two 0.019" thick 304 stainless steel walls. Compared to our competitors 430 stainless steel or galvanized steel, 304 stainless steel provides superior corrosion resistance while our 0.019" thick inner and outer walls are as must as 25% thicker than our competition.

• Inner wall 0.019"-thickness 304 stainless steel
• Outer wall is 0.019"-thickness 304 stainless steel
• High Density Ceramic Fiber Insulation is 1.18" thick

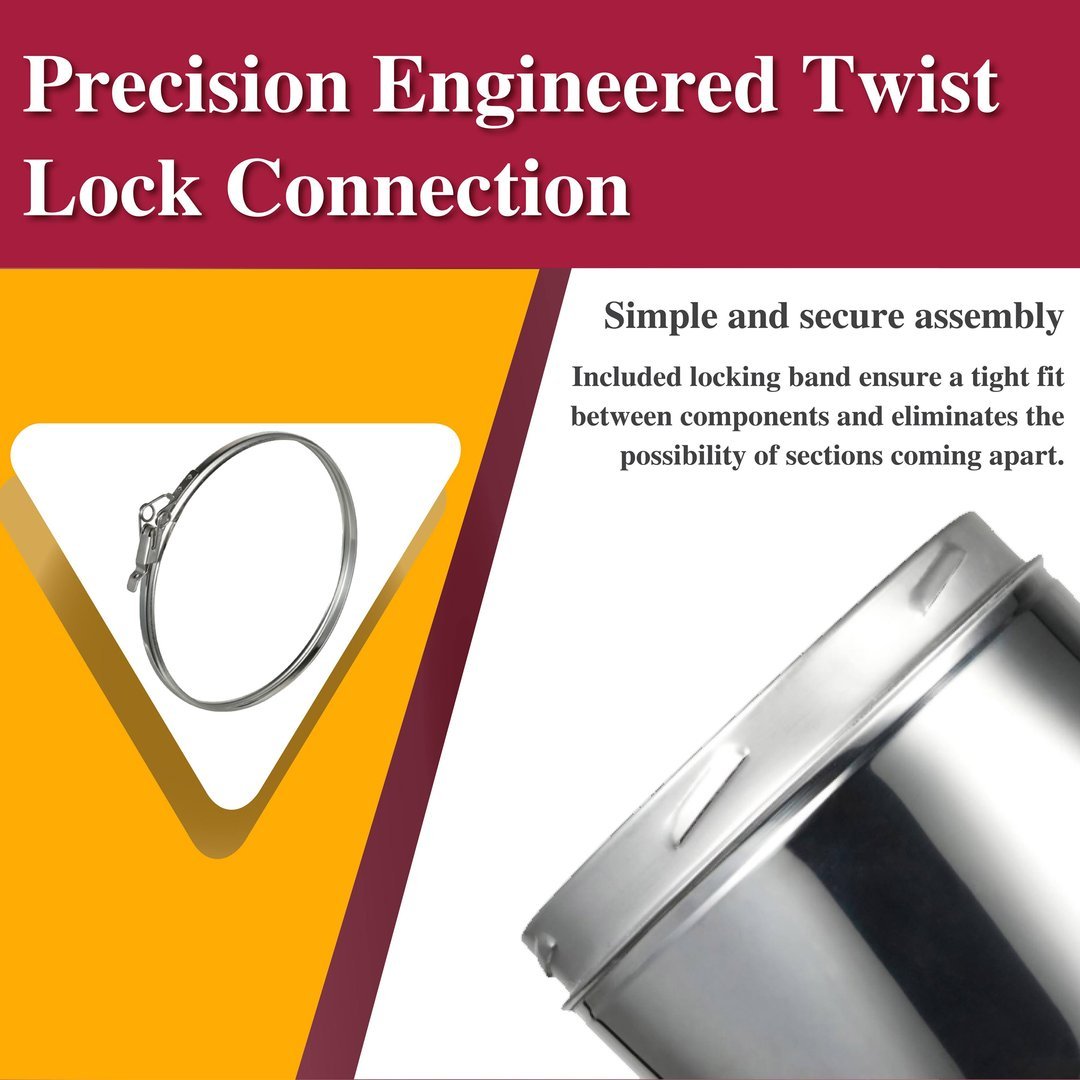

• Precision Engineered Twist Lock design

CERTIFICATION

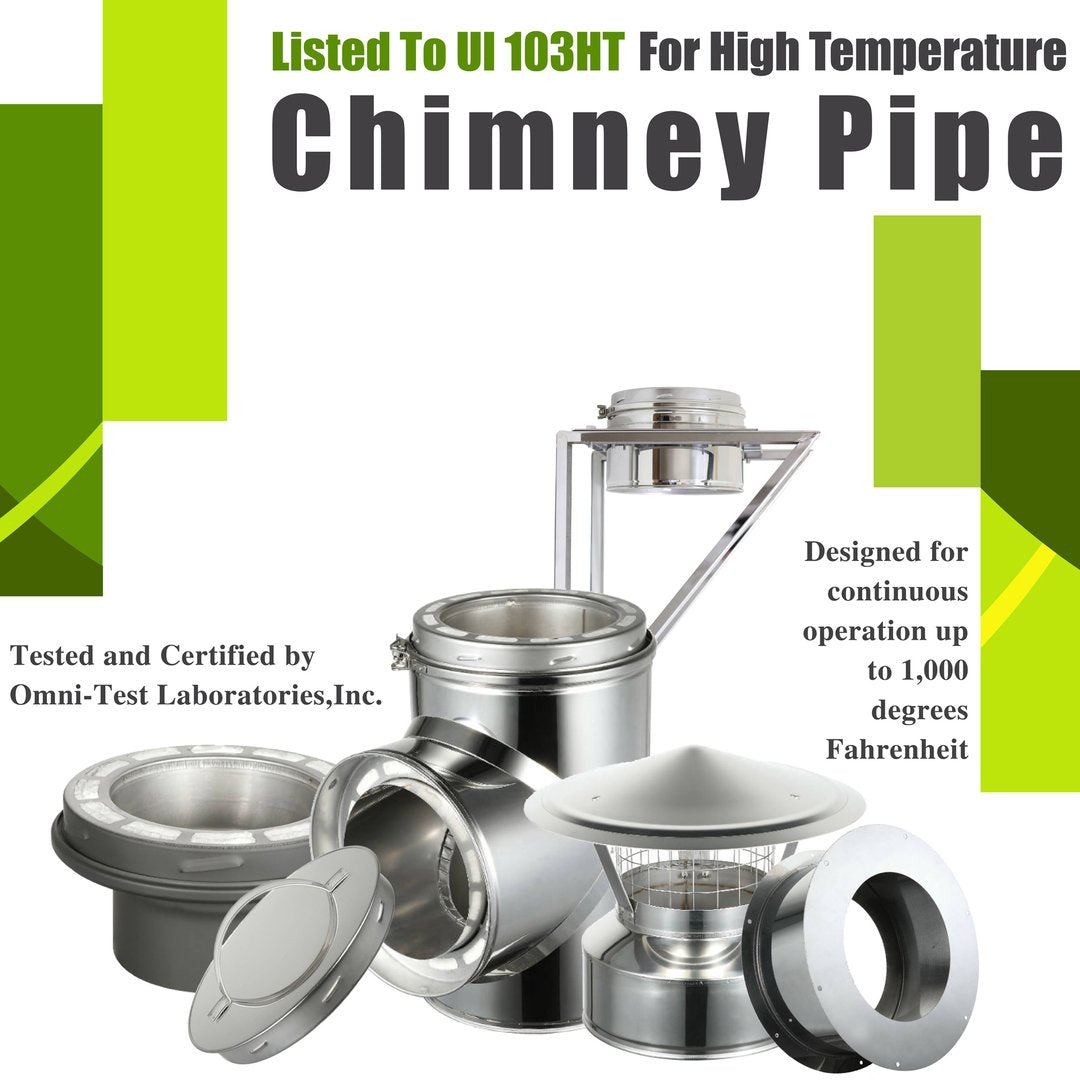

Certified and listed to the UL 103HT standard and designed for appliances that are listed for use with a 2100 Degree Fahrenheit High Temperature chimney system. It can be used with wood stoves, fireplaces, fireboxes, furnaces, boilers, water heaters, pizza ovens and other residential heating appliances fueled by wood, gas, coal or oil.

Note:Do not use with forced draft, positive-pressure appliances.

The UL 103HT chimney is designed and tested for maximum continuous use at 1000 degrees Fahrenheit. UL certification requires a stringent and rigorous test including a one hour burn at 1400 degrees Fahrenheit and three - ten-minute burns at 2100 degrees Fahrenheit.

CLEARANCE TO COMBUSTIBLE MATERIALS

Always keep at least a 2-inch clearance between chimney pipe and any combustible materials.
